Disinfection UV-C lamps
for the workplace
Fight bacteria where you work
Disinfection UV-C units to fight the pandemic
The newly developed high-quality UV-C lamps, which have the capabilities to kill bacteria, disinfect your workplace and can keep the workplace environment in a healthy state for you and your colleagues.
It comes in there main types. One is called Steri-Pac and is a UV-C lamp specially designed for Erich Keller workstations on trading floors, or in control rooms. Steri-Pac kills and eliminates bacteria at your workstation non-stop.
The other version is called Steri-Move and is a moveable and free-standing unit, which kills and destroys the virus and bacteria passing within range of the Steri-Move. The Steri-Move can be used in any office space.
The third type is called Steri-Desk and is also moveable, but is designed to be placed on top of any desk or table. The Steri-Desk is available in three versions, all with valuable and powerful impact.
Steri-Pac
Bacteria from all kinds of illnesses, viruses, and diseases are mostly being spread via your airways like exhalation, coughing and sneezes.
Therefore it makes sense to focus on the places you spend the most time, like your workstation.
The bacteria are almost completely eliminated with every Steri-Pac cycle. Reduction rates have been proved to be around 99.83 % when using the Steri-Pac disinfection UV-C lamp from Erich Keller. It is also particular effective against the clinical fight against mould spores (Aspergillus niger, Aspergillus brasiliensis), bacteria (E.coli, listeria) and viruses (influenza, coronavirus).
A single power supply unit can supply up to two antibacterial UV-C lamps with power.
The UV-C light is shielded and therefore harmless to the eyes and skin.
The two version of the Steri-Pac disinfection UV-C lamp
Retrofit
-
You can retrofit the Steri-Pac disinfection UV-C lamp all previously installed Erich Keller desks and modules with Cool-Top in-desk cooling systems. Desks without Cool-Top can be equipped with Fan-Top with built-in Steri-Pac
New Modules
-
You can also get the disinfections lamp as part of Erich Keller's brand new modular H-COM desk system with the same features as the retrofit.
Steri-Pac technical specifications
- Reduction rates, depending on the selected surface in the reaction chamber: SARS-CoV-2 (new corona virus) up to 99.83 % per pass and influenza up to 62.63 %
- Guaranteed free of ozone formation (< 5 mg/h)
- Supply voltage: 230 VAC 50 –60 Hz, voltage converter on request
- Power consumption: Maximum 20.5 W per workstation with a power supply unit for 2 workstations, maximum 18 W per workstation with a power supply unit for 4 workstations
- Guaranteed lamp life of min. 12 000 h or 18 000 starts, after that EOL residual power of 70 %. The above calculations of the reduction rate are based on this value.
- Maximum distance power supply unit to UV-C lamp: 2 m
- 2 years warranty
- There is no danger for employees from UV-C radiation when using a Steri-Pac, supplied and installed by Erich Keller AG. The safe dwell time (according to EU 2006-25-EC) is not exceeded during regular operation
- For service and maintenance work in the technical room and on the Cool-Top or Fan-Top, the UV-C modules must be switched off
* These technical specifications have been provided by Erich Keller.

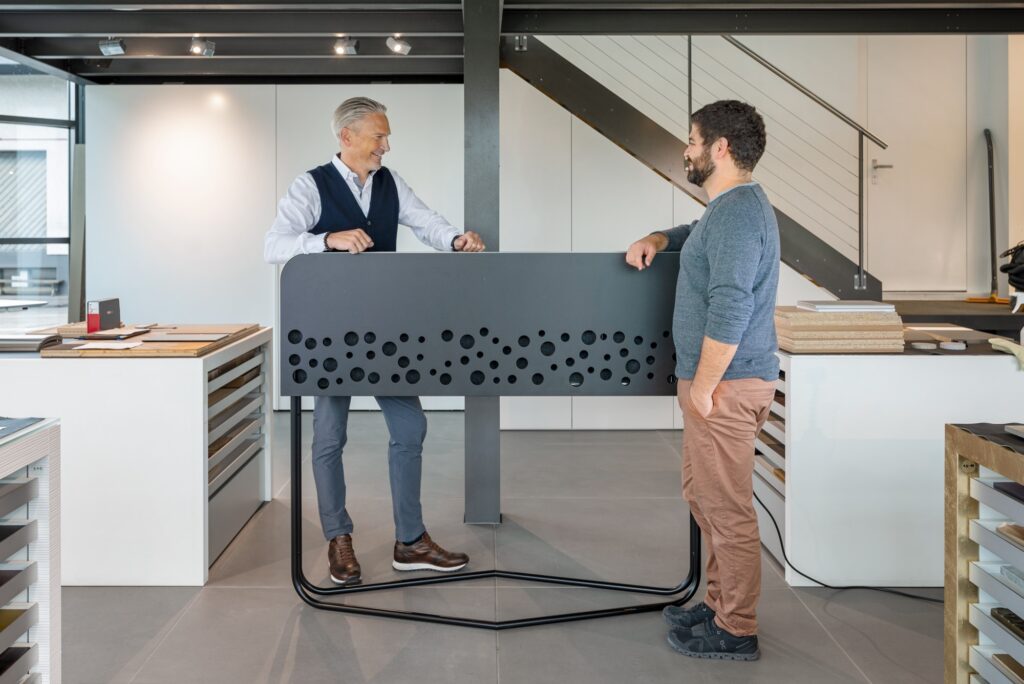

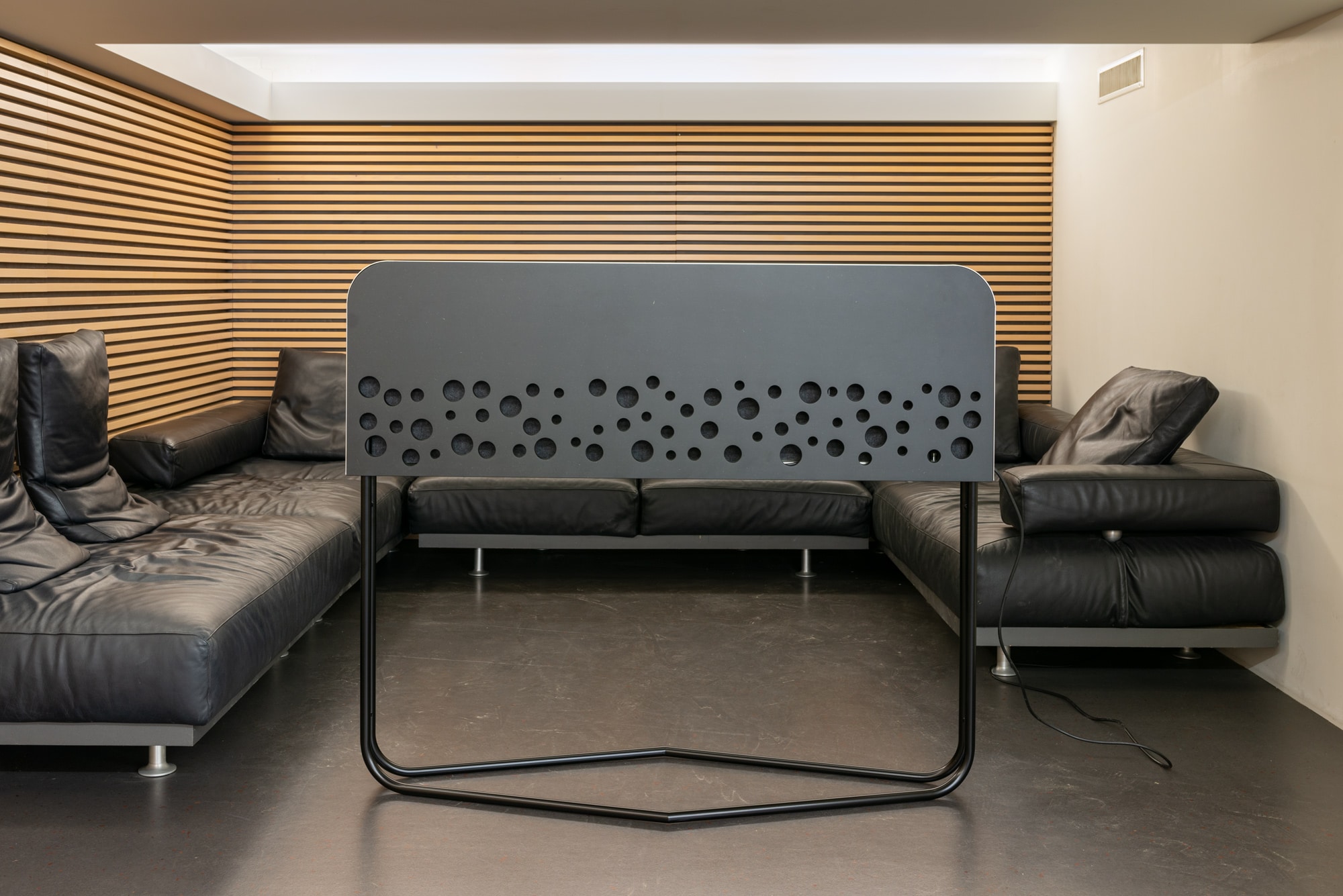

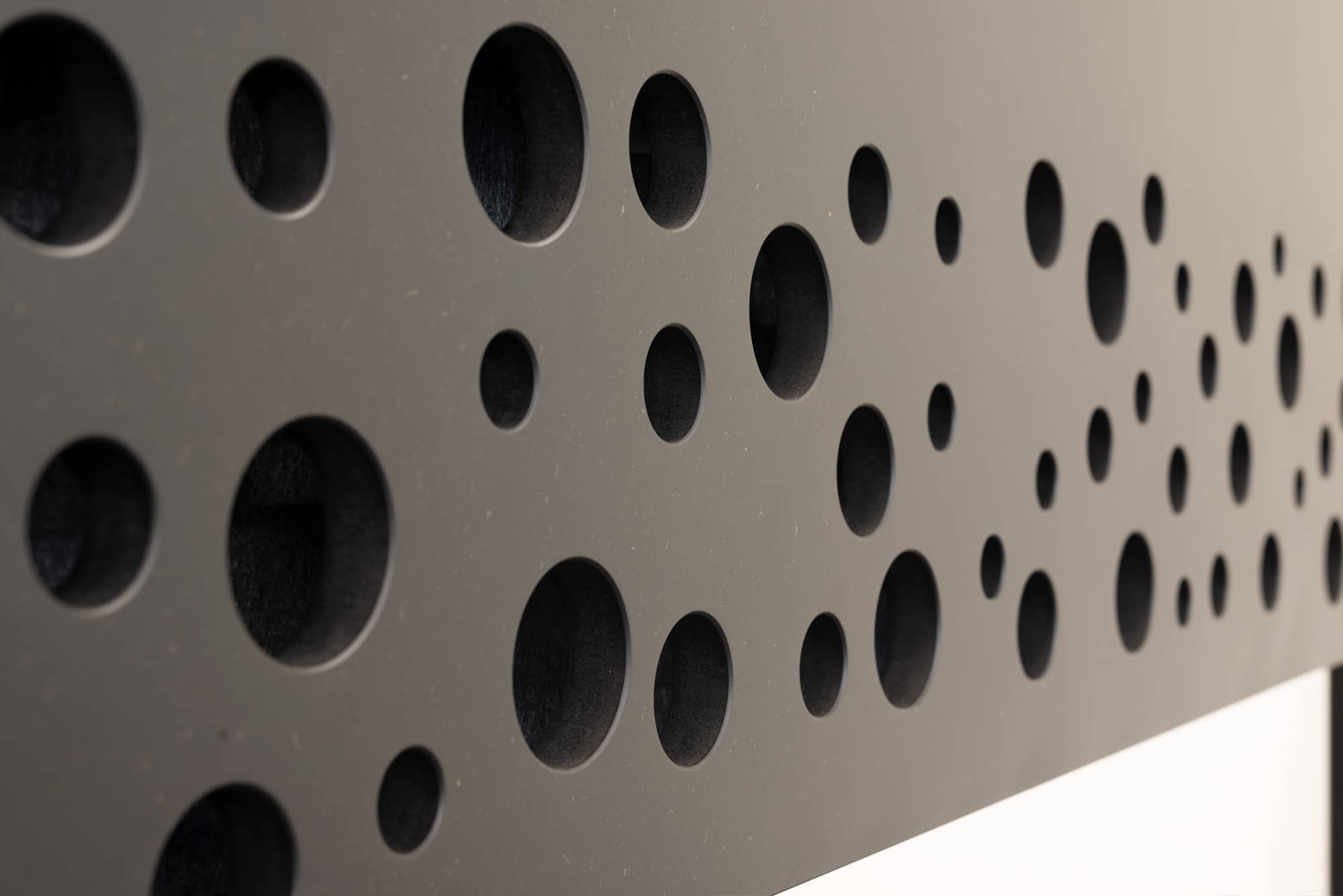

Steri-move
By focussing on the air surrounding the desk, you get far, but when you add the Steri-Move to the fight against bacteria, spores and virus, then you go even further.
With the Steri-Move you have a moveable and free-standing unit with the same functionalities and benefits as the Steri-Pac.
You can place the Steri-Move against a wall, at the end of a table, between two tables, as a room divider or any other common area where people meet and get close to each other.
The UV-C lamps are shielded and therefore harmless to the skin and eyes. The device is operated with a 230V power supply, which is only thing the Steri-Move needs to work.
Steri-Move technical specifications
- Circulation: 220 m³/h
- Sound level: 28 dB
- Reduction rate *: 99 % per run (Corona virus)
- Finishes: Steel tubing matt powder-coated, fronts MDF black matt lacquered, cover CNS matt ground
- Dimensions: 150 cm × 13 cm × 125 cm (L × W × H)
- Weight: 40 kg
- The device is operated with a 230V power supply.
- * STERI-MOVE is particularly effective against viruses (corona, influenza), mold spores (Aspergillus niger, Aspergillus brasiliensis) and bacteria (E.coli, Listeria). For corona-viruses, reduction rates of 99% per pass are achieved (Based on Walker 2007)
* These technical specifications have been provided by Erich Keller.

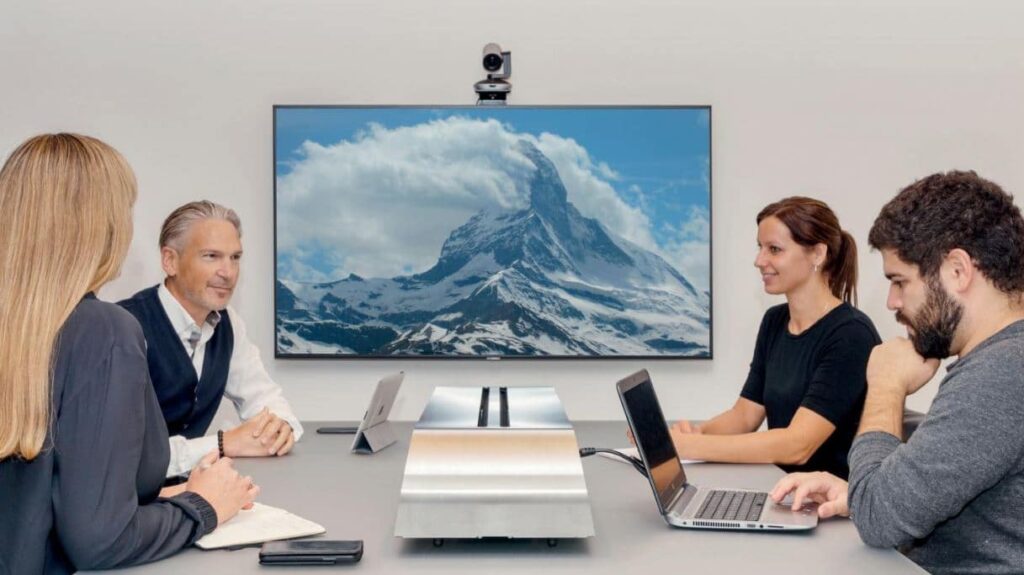

Steri-Desk
Steri-Desk is a free-standing air recirculation unit with a powerful UVC lamp that eliminates micro-organisms such as viruses, spores and bacteria.
It is moveable and can be placed on a conference table, a reception desk or any other common areas where people share the space and breathe the same air. The UVC lamps are shielded and therefore harmless to eyes and skin. The device is operated with a 230V power supply and is equipped with an ON-OFF switch. The hub version includes additional device charging options for meeting and conference participants.
The three Steri-Desk units available
Steri-Desk Oval
-
Circulation: 130 m³/h
-
Volume: 32 dB
-
Reduction rate*: 99 % per pass (Corona viruses)
-
Finishes: MDF black matt lacquered, CNS matt ground
-
Dimensions: 70 cm × 30 cm × 18 cm (L × W × H)
-
Weight: 12 kg
-
Power consumption: 20W
Steri-Desk Hub
-
Circulation: 180 m³/h
-
Volume: 32 dB
-
Reduction rate*: 99 % per pass (Corona viruses)
-
Additional features: 4x power supply (230V), 4x USB-charging ports
-
Finishes: MDF black matt lacquered, CNS matt ground
-
Dimensions: 96 cm × 30 cm × 15 cm (L × W × H)
-
Weight: 20 kg
-
Power consumption: 39 W
Steri-Desk Cube
-
Circulation: 180 m³/h
-
Volume: 32 dB
-
Reduction rate*: 99 % per pass (Corona viruses)
-
Finishes: MDF black matt lacquered, CNS matt ground
-
Dimensions: 96 cm × 30 cm × 15 cm (L × W × H)
-
Weight: 19 kg
-
Power consumption: 39 W
* Steri-Desk is particularly effective against viruses (corona, influenza), mold spores (Aspergillus niger, Aspergillus brasiliensis) and bacteria (E.coli, Listeria). For corona-viruses, reduction rates of 99% per pass are achieved (Based on Walker 2007)
These technical specifications have been provided by Erich Keller.
